Operating in the air
This page will demonstrate most functions to operate aircraft in the air in Sweatbox.
Tag for simulation
The easiest way to control aircraft in the air is to use the Matias (built in) tag.

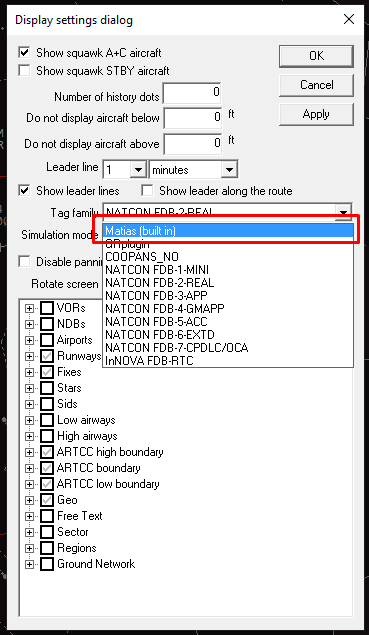

You can change tags from OTHER SET - Display Settings
The brackets show who has simulator control of the aircraft as a "pseudo pilot".
Clicking the brackets allows to get simulation of the aircraft and act as the pseudo pilot.
An asterisk inside the brackets indicate that you have simulation of the aircraft.
If you are multiple mentors / operators it is possible to transfer simulation by clicking the brackets and choosing who to transfer to. The receiving operator does not have to accept; the simulation is instantly transferred.
Simulation is now transferred to BWR which is acting as pseudo pilot for this aircraft.
Handoff
Transferring the tag is done as normal by clicking the callsign.
If there are multiple stations online it is recommended to use manual transfer to ensure that that tag is properly transferred to the correct controller.

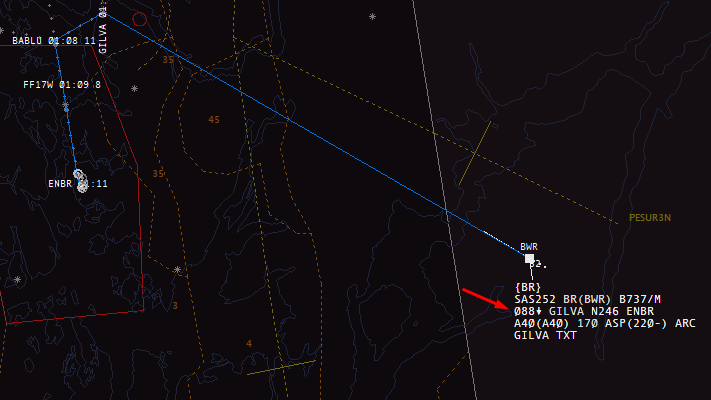

Show route
To have a glance at the current route, right click the RFL field.
To enable persistent drawing of the route, right click the AFL field.
Headings
Can be set by clicking and selecting the new heading.

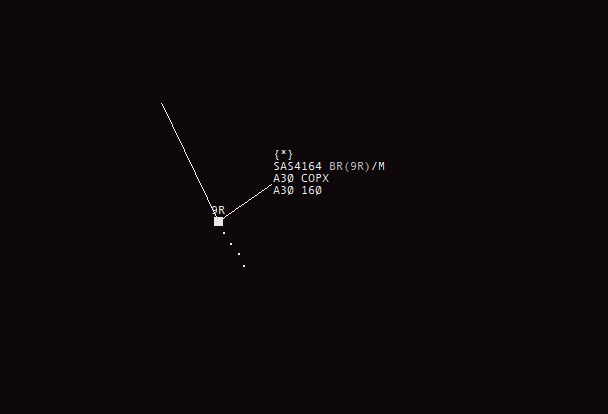

Another option is to click and drag out a heading you would like to assign the aircraft, form the heading field. Left clicking will set the heading, right click cancels.
Climb and descent

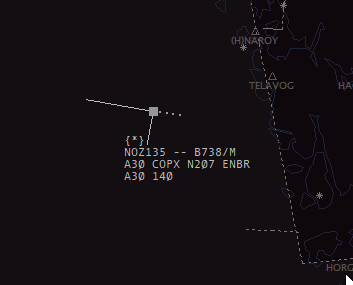

Altitude is modified by selecting a new one from the Temp alt in parentheses. The aircraft will begin climbing or descending shortly after the value is changed.
Speed control
If the aircraft does not have any assigned speed it will follow the normal speed profile according to the aircraft performance.
Applying speed control is done by clicking "ASP", then selecting the assigned speed.
Selecting --- will cancel speed the speed restriction and resume normal speed.
Click the icon to cycle between the modes.
In order from left to right, they are:
- No speed control
- Exact speed
- Or less
- Or greater
Routing
Routing is controlled by the route ribbon.
- Current inbound waypoint. Can also be used to give a direct.
- Next waypoints in route
To send the aircraft direct a waypoint, modify the next waypoint by clicking it, write the waypoint and press enter.
It is also possible to send the aircraft to the next waypoint from the route.
Example direct GILVA

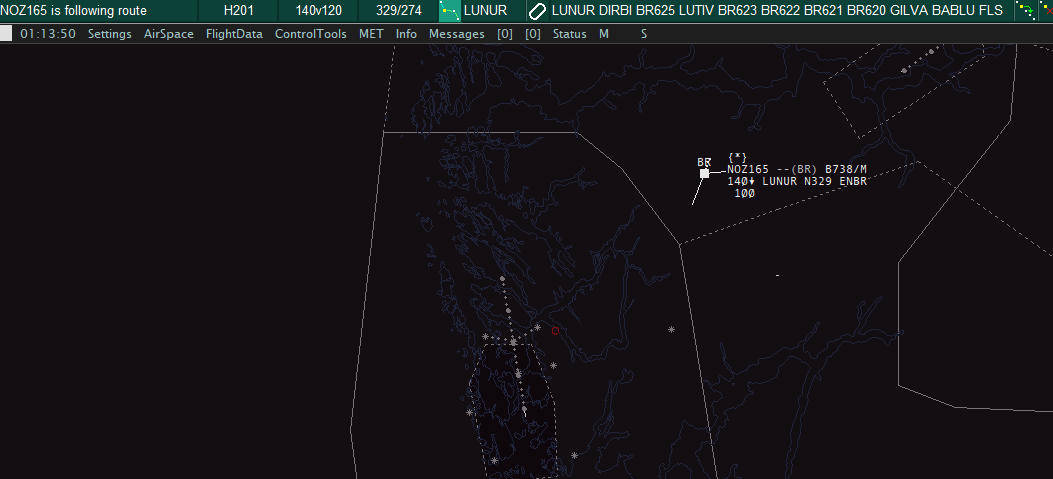

The GIF below shows how a direct to waypoint GILVA can be done via the route ribbon.
Manual route drawing

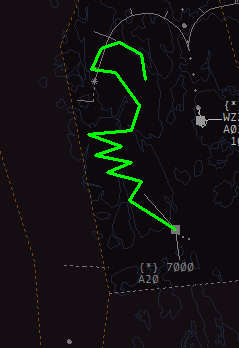

Right clicking the inbound waypoint also allows to draw a new route the aircraft should follow. Left click to create points, then right click to add.
Clearing approach
Once the aircraft is about to establish either on a heading or via route, select the applicable option depending on scenario from the "Approach commands" ribbon.
For full stop landing, the second option is recommended to have the aircraft vacate as soon as possible. Selecting any of the intersections will try to have the aircraft vacate via that specific intersection.
It is also possible to clear approach from the Matias tag, via the altitude field.
Holding

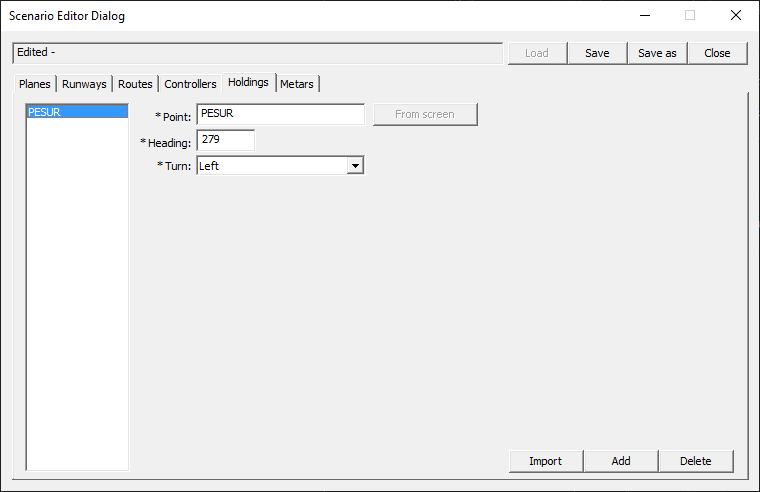

Holdings must be pre-defined in the scenario as published holdings in order to use them.
Then once the aircraft is inbound the holding FIX, click the holding instruction from the route ribbon.
Confirm that the aircraft is entering holding via the status ribbon
Controlling VFR
Since these aircraft usually don't follow any waypoints we have to manually control their movements using headings, or use the manual route drawing from the previous "Routing" section.
Example using the route ribbon.

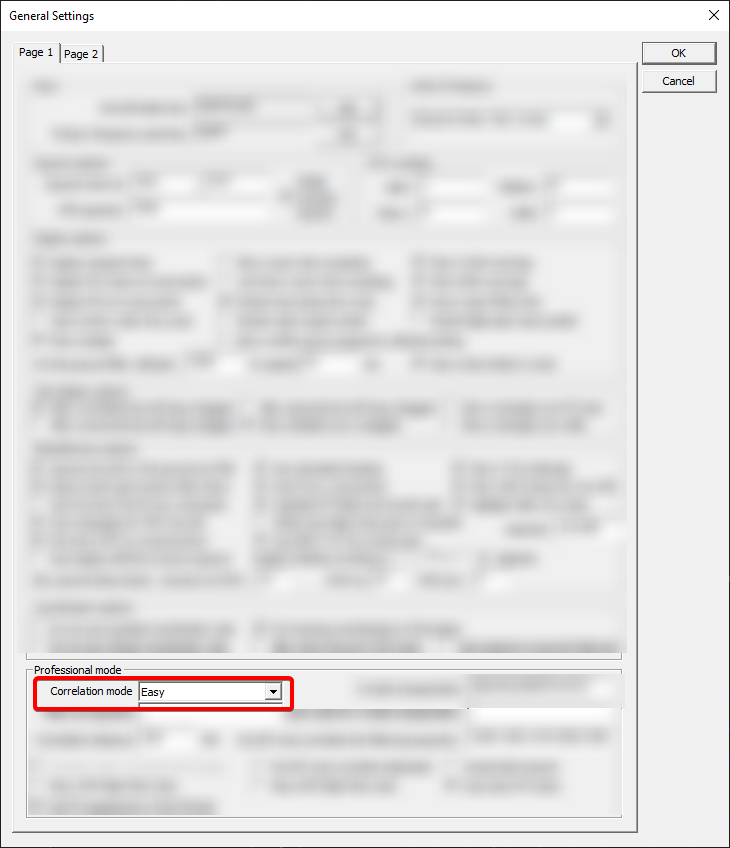

It is highly recommended to set Correlation mode to Easy in General settings. This allows to control uncorrelated aircraft via the Matias tag. Very useful for VFR that is squawking 7000.
Uncorrelated aircraft squawking 7000 with correlation mode "Easy". This will only apply locally - others will still see an uncorrelated tag.
Establish on final
The easiest way to achieve this is to vector the aircraft onto the ILS (using heading) then use clear approach.
Touch and go / low approach
From the Approach commands ribbon, select any of the following options
| Option | Function |
|---|---|
| 000 | Touch and go |
| 050 | Low approach at 50 ft |
| 100 | Low approach at 100 ft |
| 150 | Low approach at 150 ft |
| 200 | Low approach at 200 ft |
Confirm via the status ribbon
RNP AR

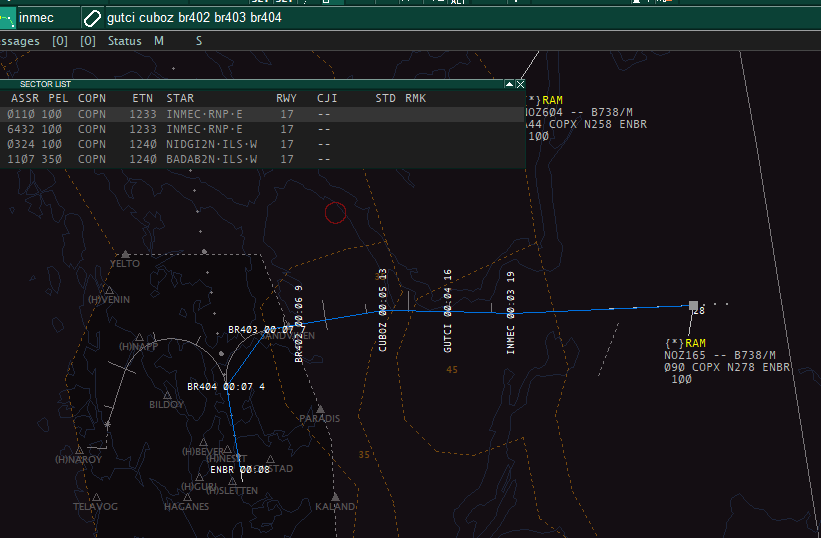

Having aircraft properly fly RNP AR is a tedious process. It is generally recommended to avoid these procedures in Sweatbox. Each waypoint must be added to the route from the route ribbon.
Descend the aircraft according to constraints, then set clear approach from the altitude field once the aircraft is turning to final track.
