EKCH - Copenhagen/Kastrup

TOBT

During peak times Copenhagen adhere to A-CDM. This is to minimize delays. In order to ensure an on time departure please do the following.

  • Fila a flightplan with a realistic EOBT (Estimate off block time)
  • Log onto the network in good time.
  • Go to cdm.vatsim-scandinavia.org
  • Confirm the time, or select a precise time when you will be ready
  • MAKE SURE you are ready within +/-5 minutes of that time
    • An on time departure is still not guaranteed but highly increased in likelihood

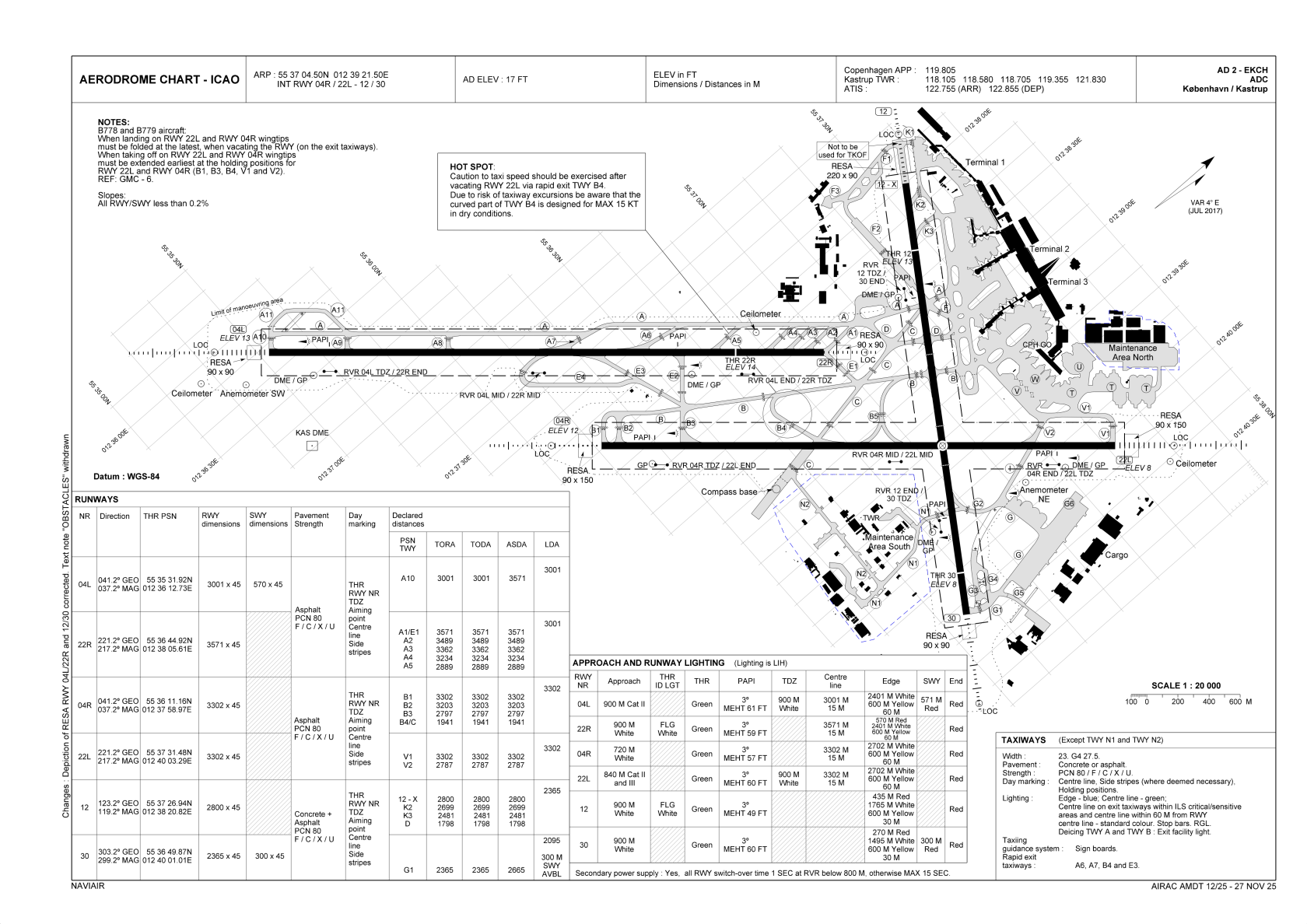

Available stands

Overview

Copenhagen - Kastrup airport is the biggest in Scandinavia with 25.000.000 passengers served in 2023.

ALWAYS remember, if you are unsure or in doubt then ask. We will always do our best to help you out!

   Copenhagen Airport Pilot Briefing 2024.pdf

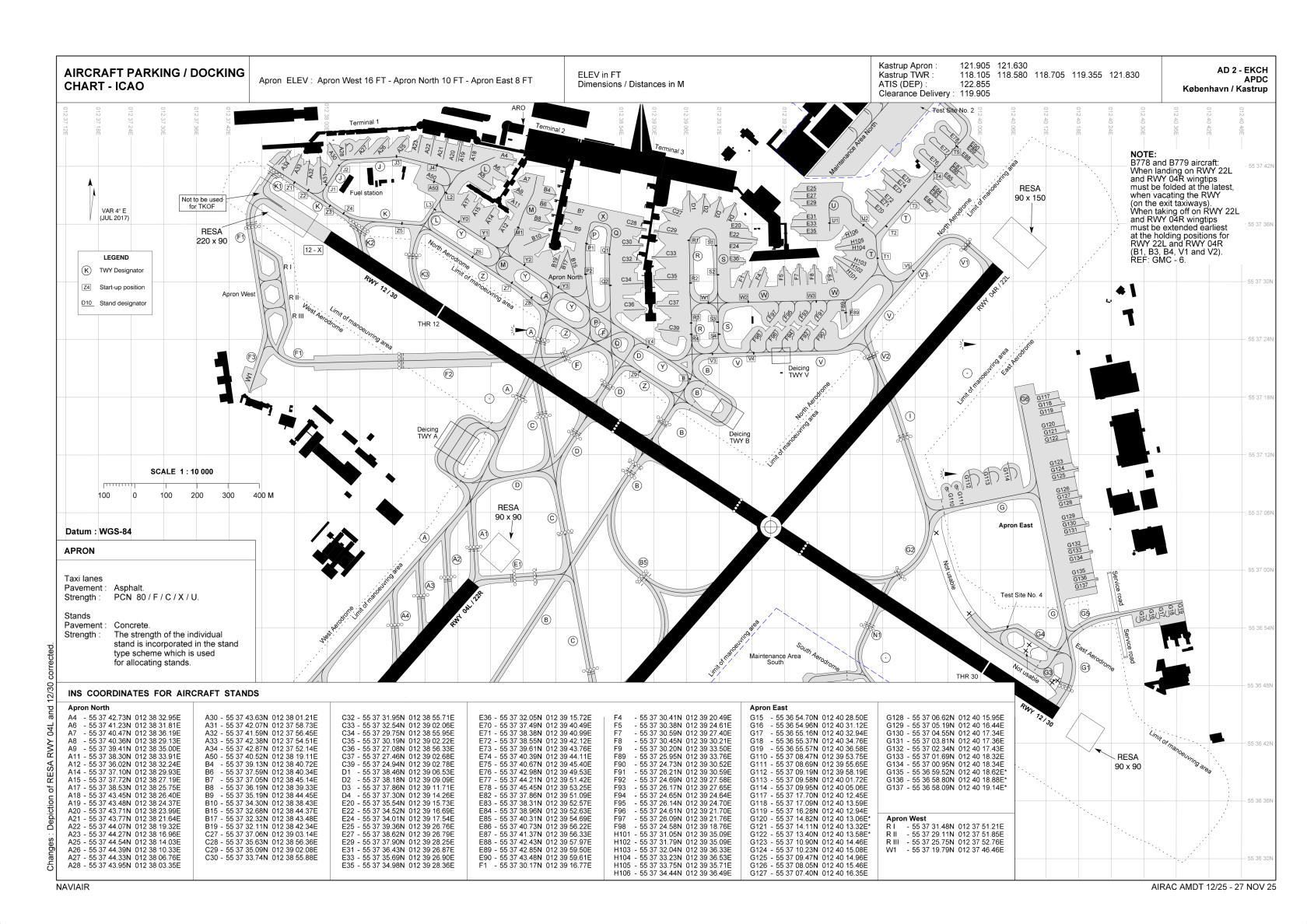

Use of stands

In Kastrup, there are 3 main terminals. Terminal 1 & 2 is for Schengen flights, Terminal 3 for Non-Schengen & Shengen. CPH GO is for low-cost carriers.

Which airline parks where?

Screenshot 2024-04-23 203729.png

A Stands - Shengen only

Screenshot 2024-04-23 173541.png

B Stands - Schengen only

Screenshot 2024-04-23 204127.png

C Stands - NON Schengen only

Screenshot 2024-04-23 204148.png

D Stands - Flexible

Screenshot 2024-04-23 204217.png

E Stands - Flexible

Screenshot 2024-04-23 204253.png

F Stands - Flexible

Screenshot 2024-04-23 204318.png

G Stands - Cargo only

All cargo operators park at stands G120 - G137

Screenshot 2024-04-23 205257.png

General aviation / Business jets & misc.
  • In regards to GA, EKCH normally doesn't receive those. They normally prefer EKRK (Roskilde).
    However if/when they come to EKCH they park at either A31 - A34, G15 - G19 or if they are parked here for some time, at Apron West.
  • VIPs (i.e. state visit, royals, pop-groups) always park at W1 (Wilhelm Lauritzen Terminal)
  • Bizz-jets normally park at A31 - A34 or in case of long term parking, at Apron West
  • Helicopters park at G110 or G111

Screenshot 2024-04-23 205032.pngScreenshot 2024-04-23 205227.pngScreenshot 2024-04-23 205257.png

###

IFR clearance

Initial contact is with Clearance Delivery, reporting callsign, stand number, and latest ATIS identification letter.
Remember to read/listen to the entire ATIS as there might be some specific info related to you, especially if you are unable to perform customized pushback!

Requesting De-Icing

If you require de-ice prior to your departure, request with your departure clearance request.

Push-back

All stands require pushback (except F89 - F91 & Prop/Bizz-jet at A25 - A34) All stands have designated release points and a secondary point. However, ATC can deviate from standard procedures if it's more optimal for the current traffic situation.
If you for some reason is unable to perform a pushback to one of these points, you MUST inform the controller when asking for pushback!
Pushback Routes 2023.jpg

Taxi

In Copenhagen we have standard taxi routes, however, those are subject to traffic conditions, and can at any time be changed by a controller.

Standard taxi routes Runway 22R/22L specific

Group 53EKCH TXI.png

Standard taxi routes Runway 04R/04L specific

Group 52EKCH TXI.png

### Runways

In Copenhagen, we have 3 runways, 04R/22L, 04L/22R & 12/30.

The 2 parallel runways are the primary with the Left being used for landings and the Right for departures.
Runway 12/30 is only to be used when crosswind exceeds 15 - 20 knots on the parallels.

All runways have ILS, which always will be used, if not visual. Only 04L and 22L have ILS CATIII

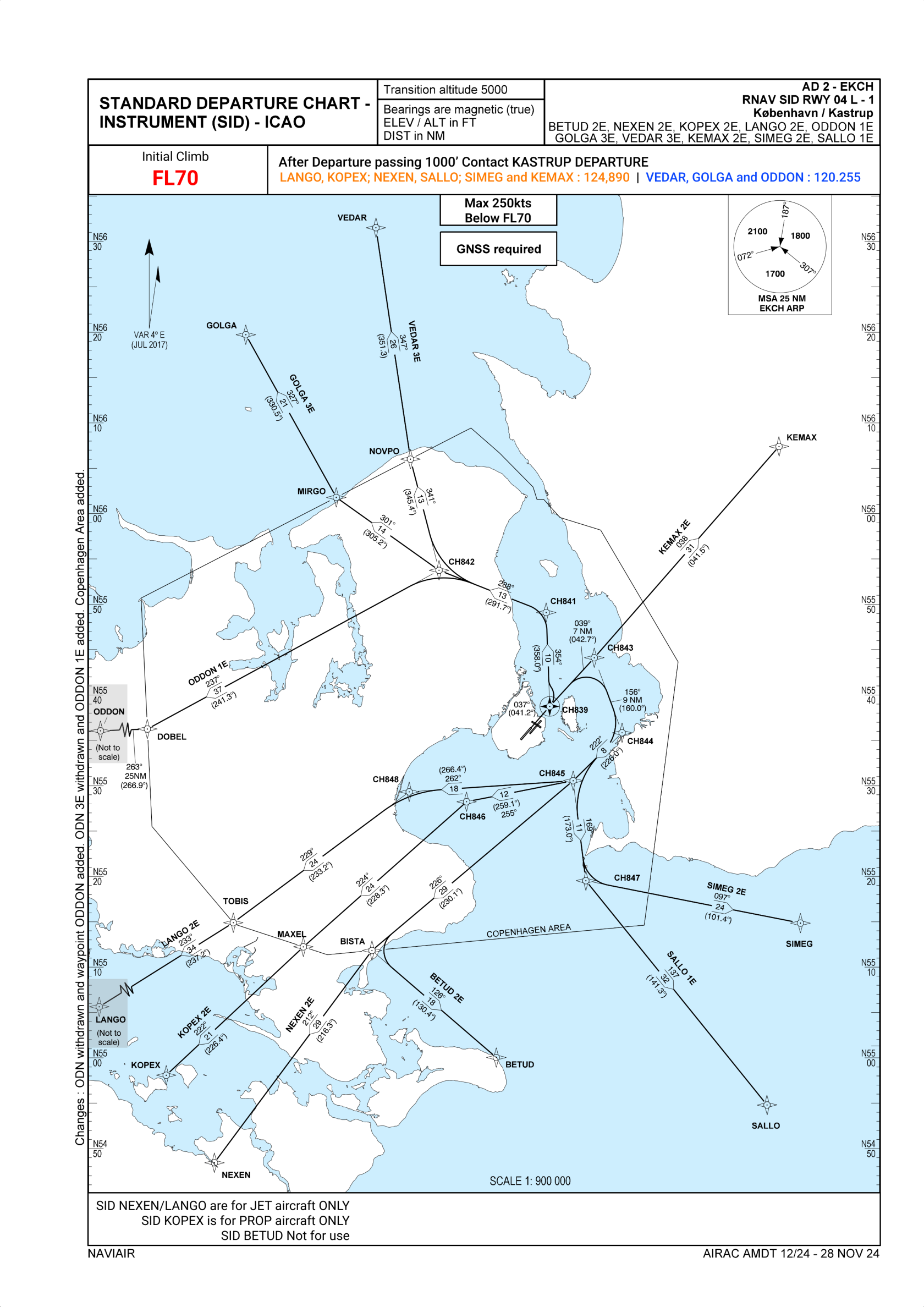

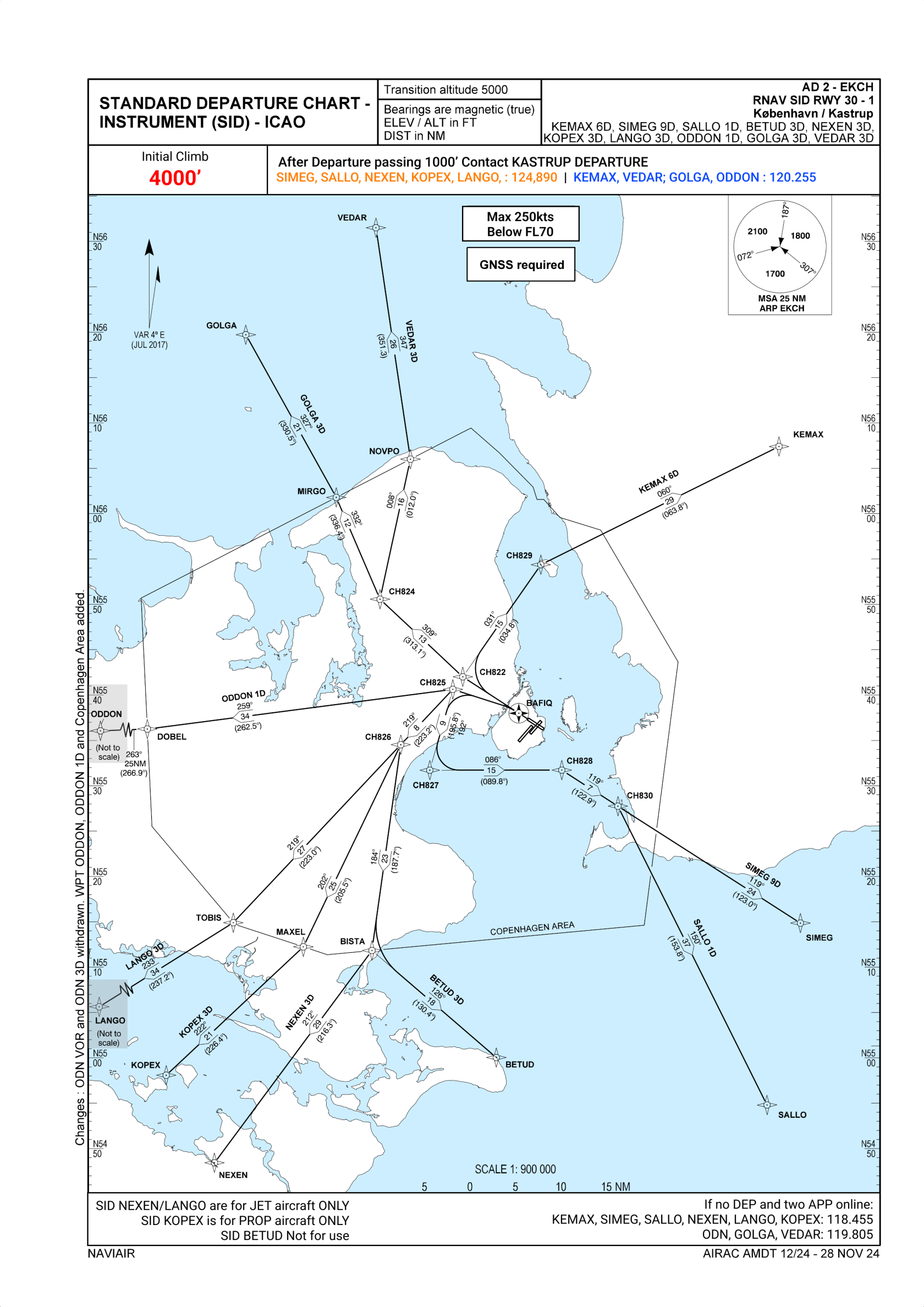

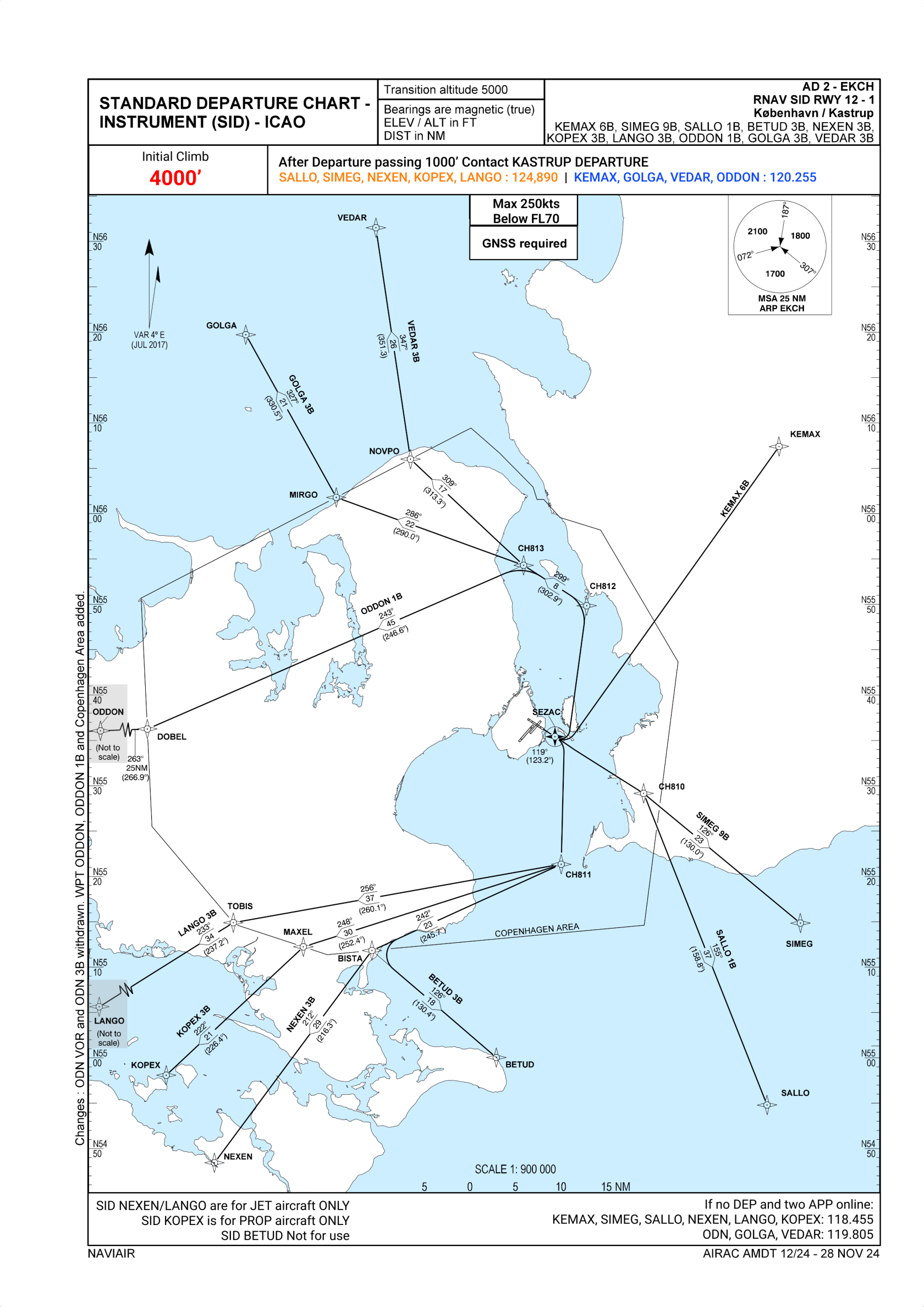

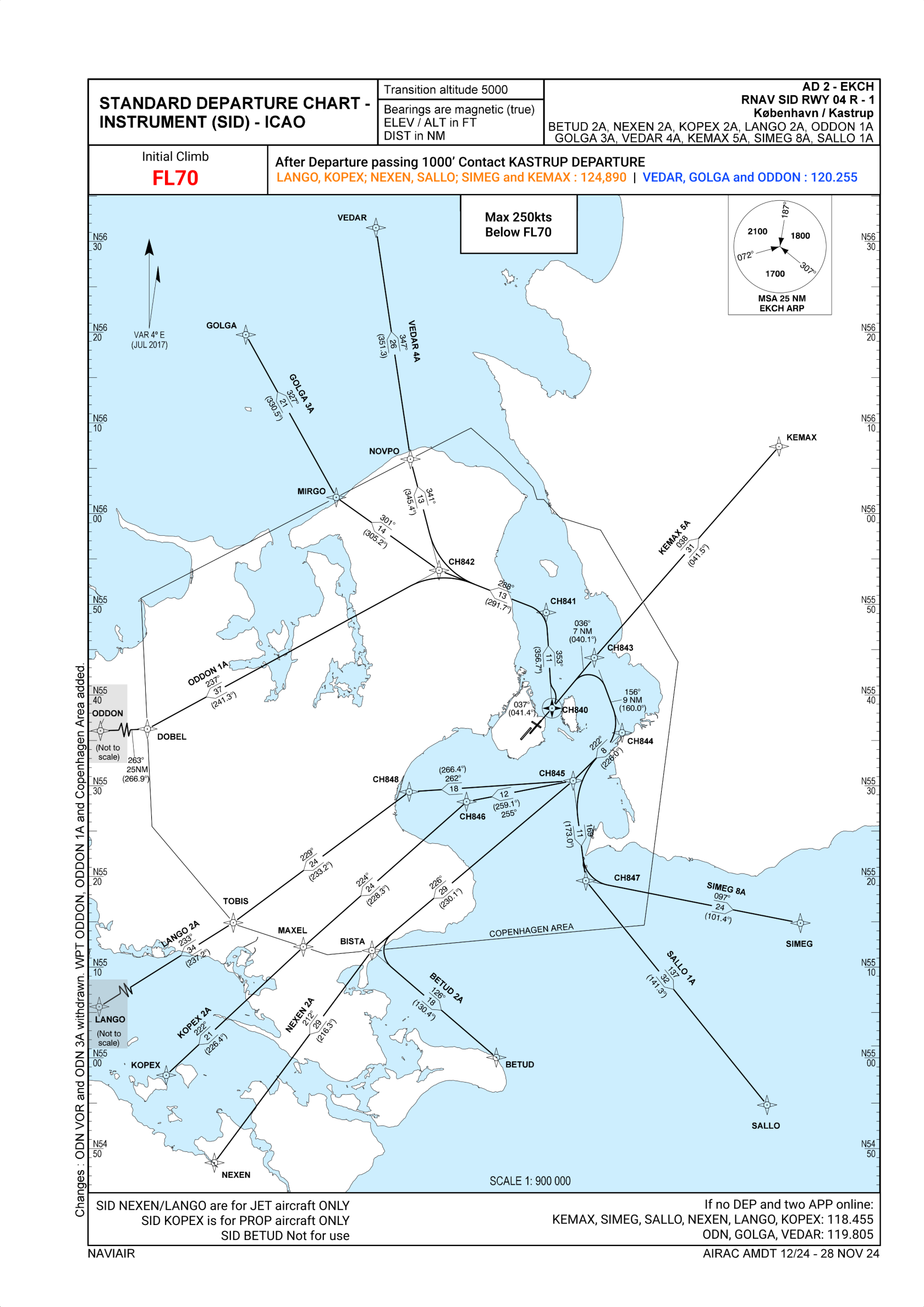

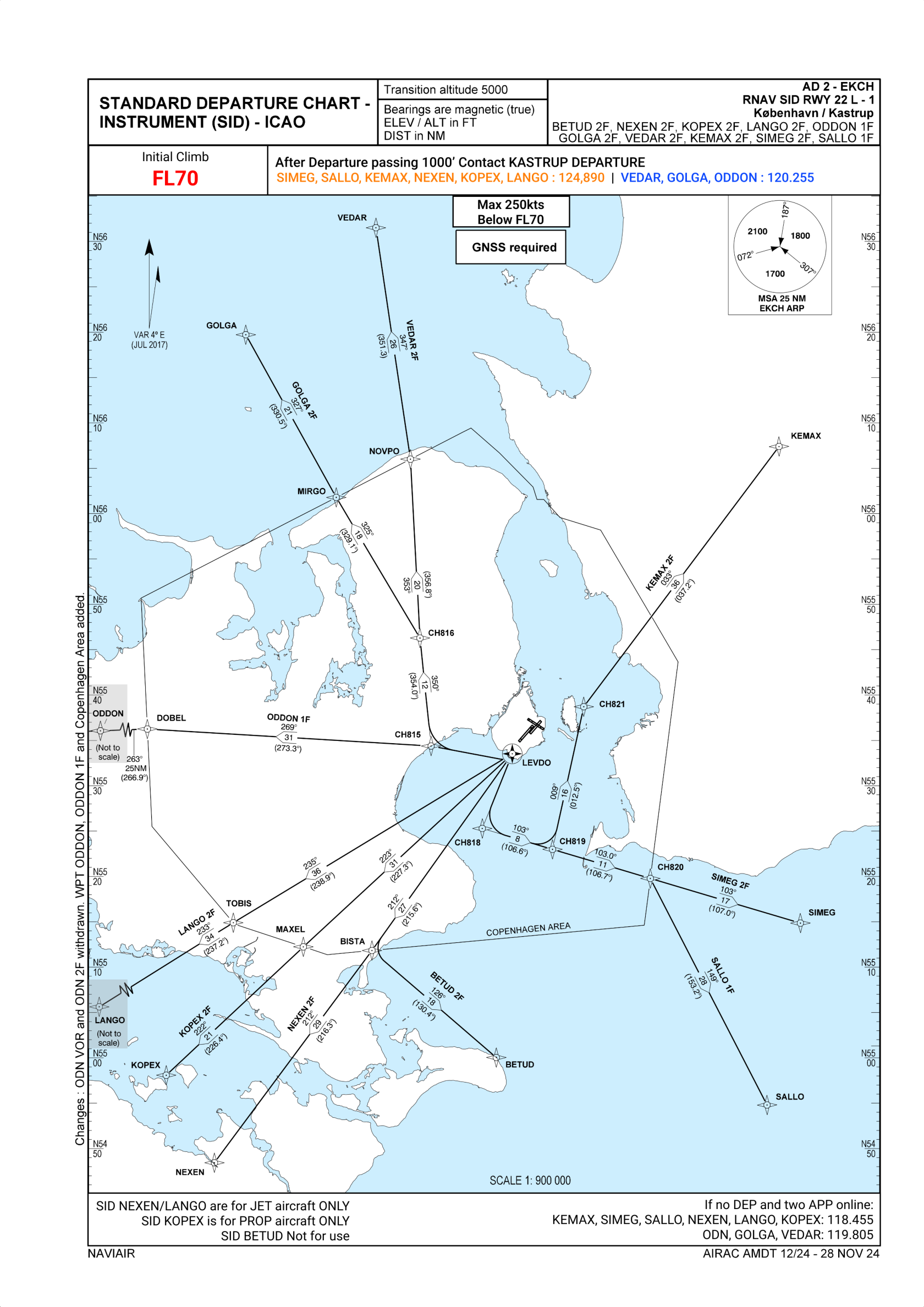

SIDs

Depending on destination and routing each SID can be chosen at pilots discretion, However.
BETUD is NOT used on Vatsim
KOPEX is PROP ONLY
LANGO & NEXEN is JET ONLY
EKYT & EKAH arrivals must use the GOLGA
If SALLO is a waypoint in the Flightplan this MUST be used and NOT SIMEG

When creating the Flightplan do NOT include the identifier (i.e. 2C), simply write the waypoint name.

ALL SIDS HAVE INITIAL CLIMB OF FL070 from RWY 22R/04R & 4000 ft. from RWY 12/30!

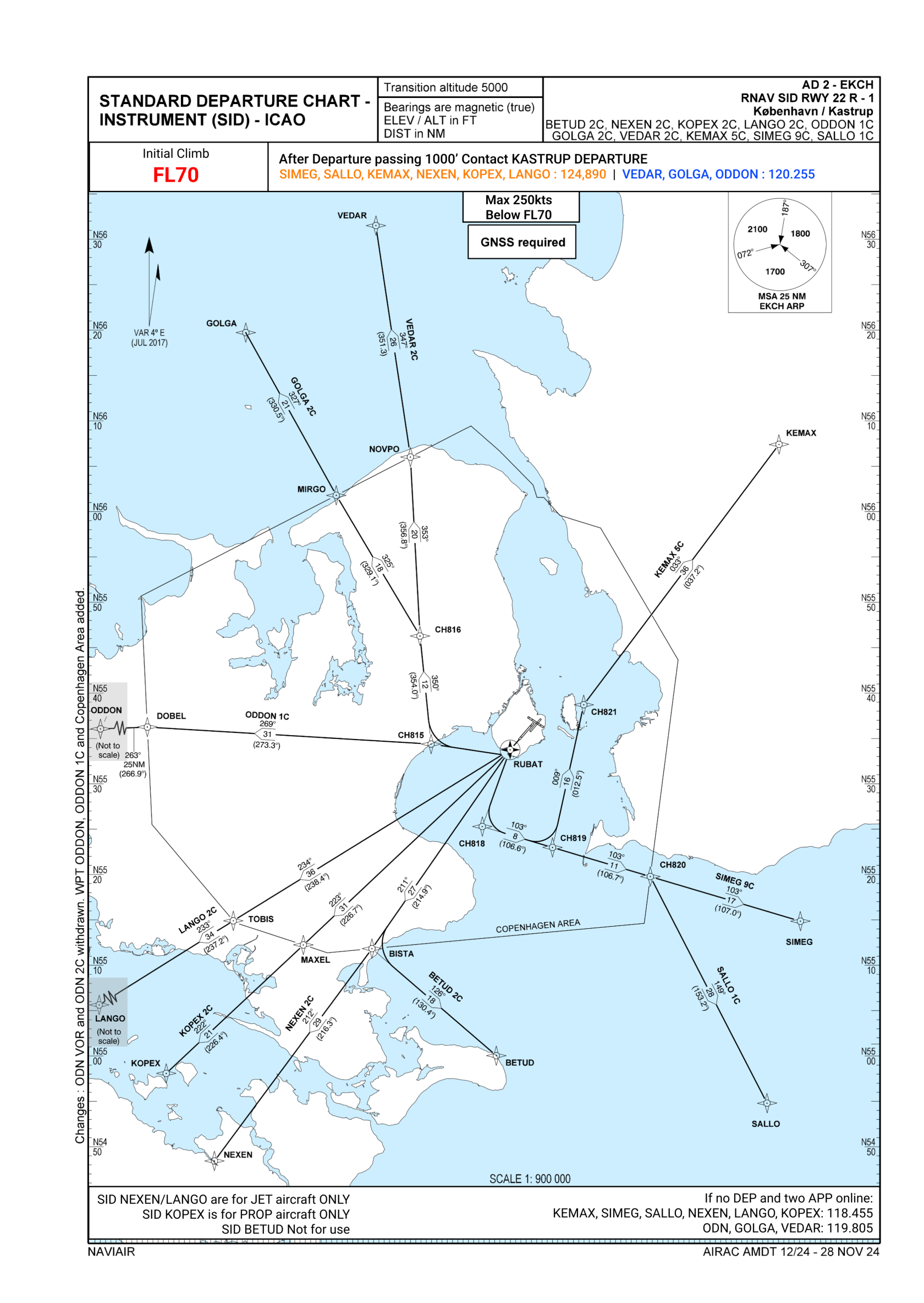

22R SIDS - EKCH.png

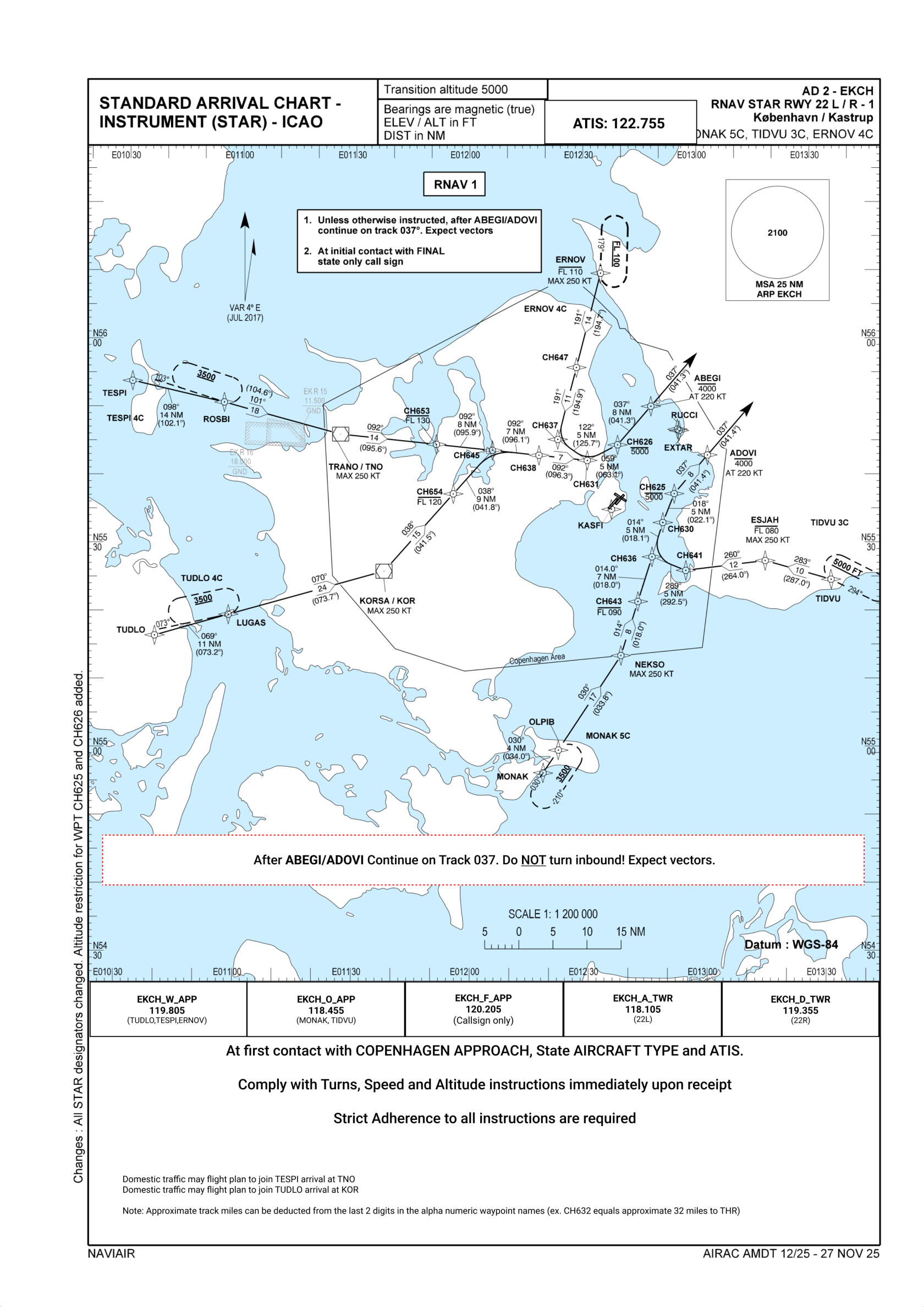

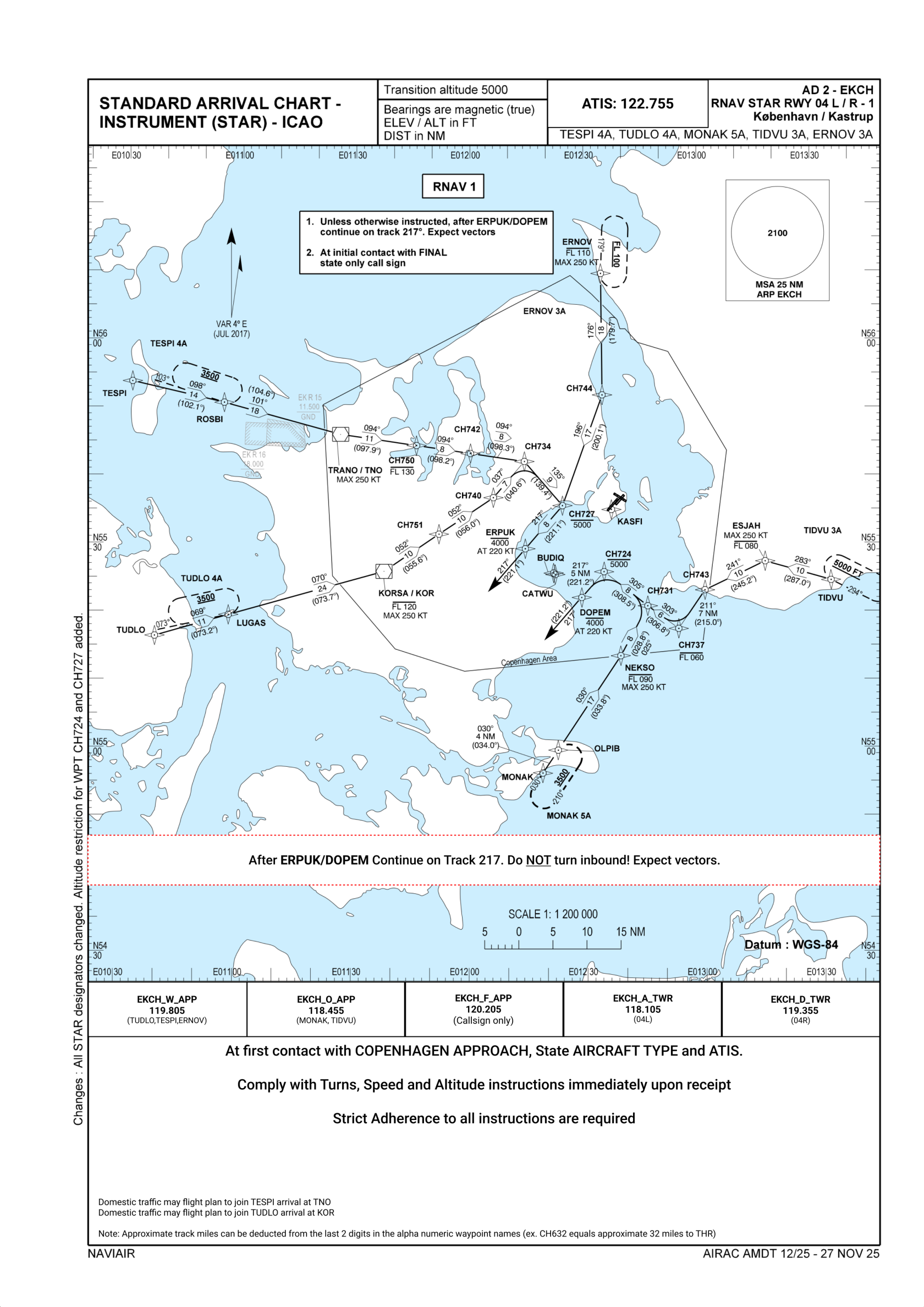

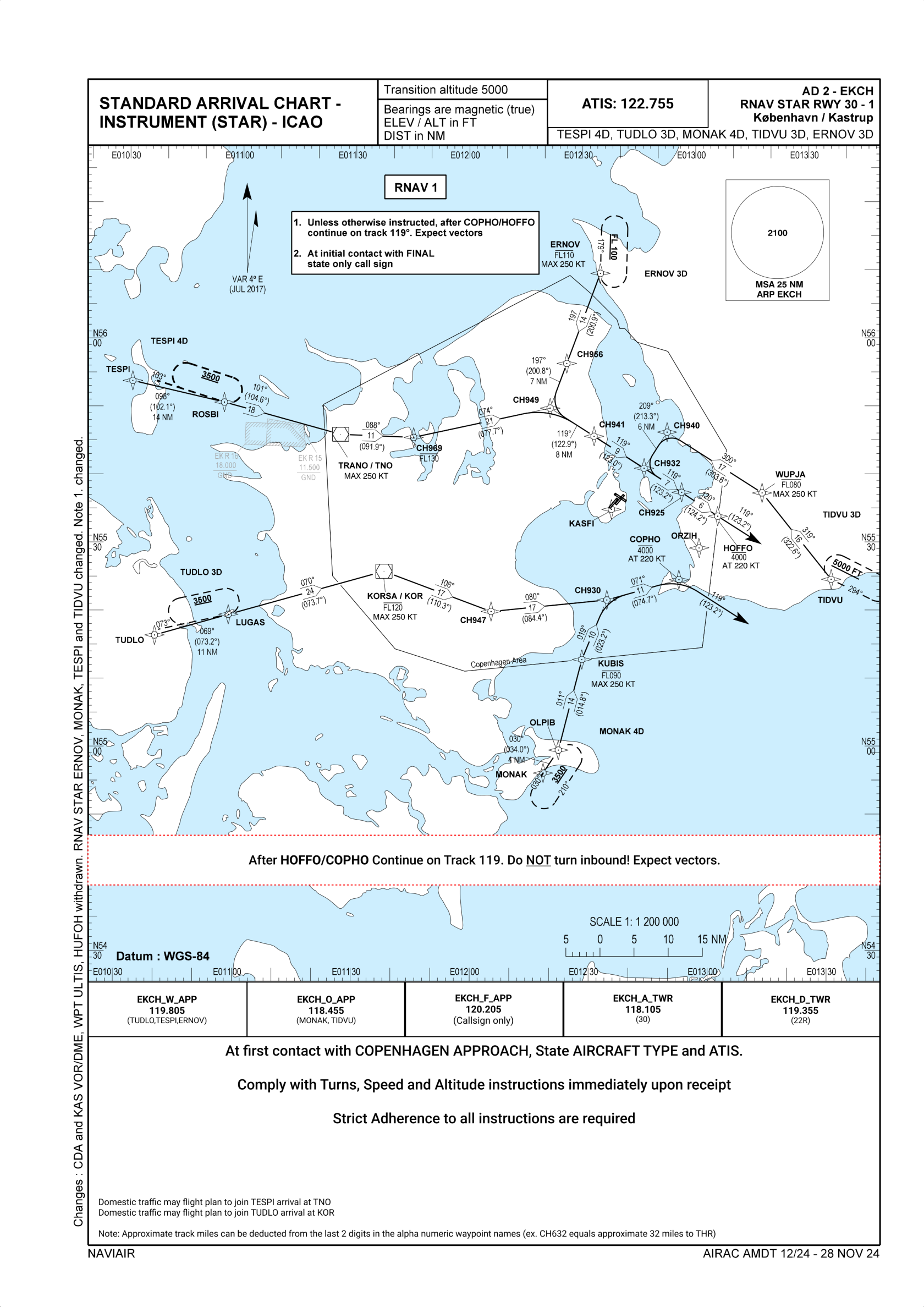

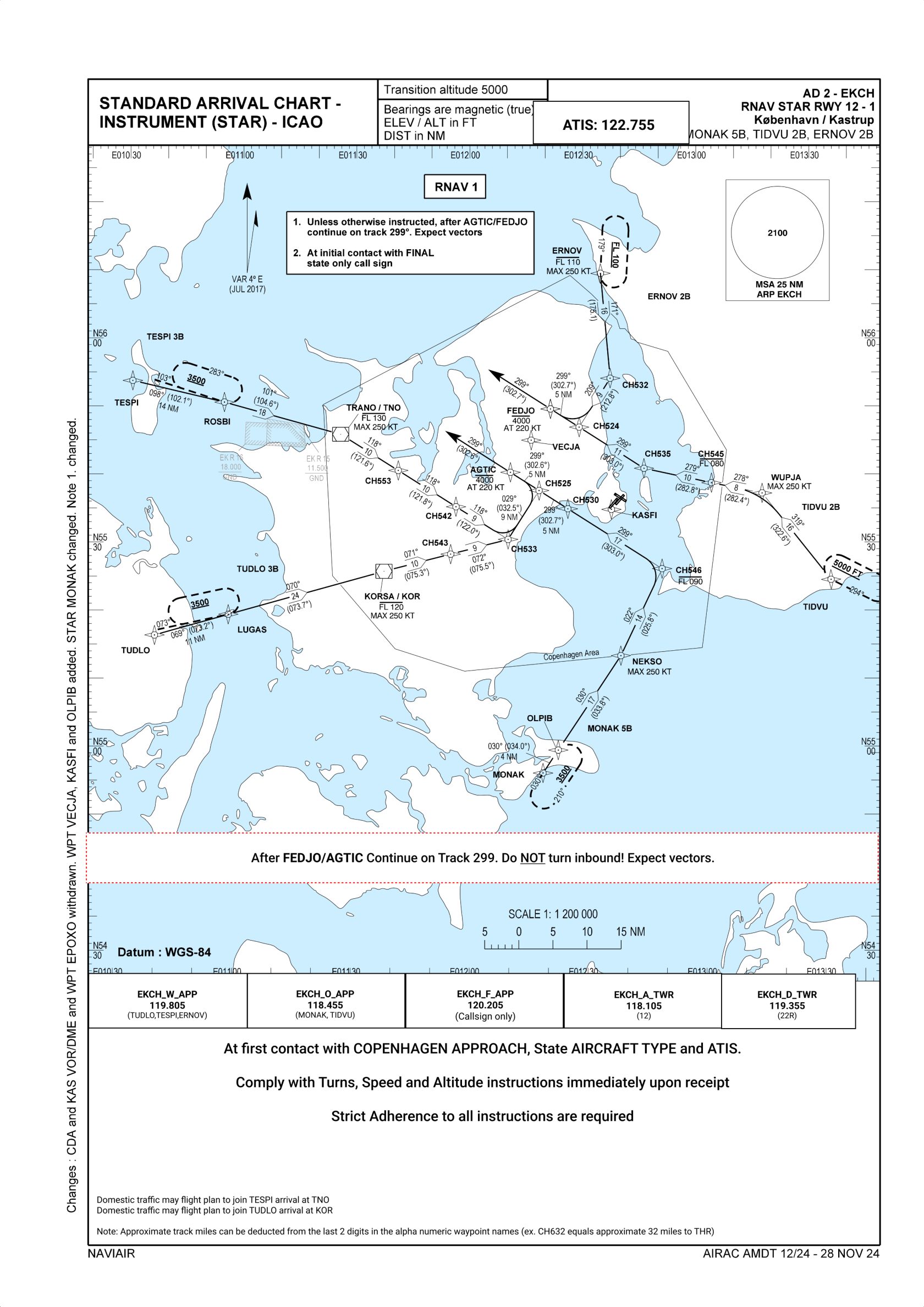

STARs

Arrivals into Copenhagen come from 5 directions, and all have the following items to know.

  • Initial fix
    • Also the name of the STAR
  • Holding fix
    • Where the holdings are on the arrivals
  • Handover fix
    • Where you are handed over to the approach controller
  • Path to the Vector fix
    • Path until the arrival culminates in a vector

Holdings

Every STAR has a holding, either on the first or second point on the STAR. You can expect holdings in peak hours

STAR Point of Holding Inbound course Turn Time of leg
TESPI ROSBI 103˚ Left 1 min
TUDLO LUGAS 073˚ Left 1 min
MONAK CODAN (CDA) 032˚ Right 1 min
TIDVU TIDVU 294˚ Right 1 min
ERNOV ERNOV 179˚ Left 1 min

The path after handover to APP

When handed over to APP you will continue to fly on the RNAV arrival until you reach the “Vector fix”. After you reach this fix you must continue on the Specified Vector until you are turned in by APP! Even if you don’t hear anything you must continue on this Downwind heading as per the charts.

Make sure you comply with all altitude and speed restrictions on the STAR, and advise Copenhagen Approach if you are unable

Approach

ILS is the only approach type normally used with vectors. RWY 04L and 22L have ILS CATIII, whilst the other runways only have ILS CATI.
Visual Approaches can be approved for all A/C types on request to the APP controller.

Direct routings

If traffic permits you might receive directs from both EKDK_CTR and APP.
Control will normally send directs for the Handover fix, you might also get a direct for the initial ILS fix. This WP is however not part of your STAR or ILS, so you will have to manually input it.

Screenshot 2024-04-23 231233.png
