Expanded CDM Procedures (TWR/GND/DEL)

Starting CDM (All Controllers)

As the first thing when you log on you must activate vACDM to use it

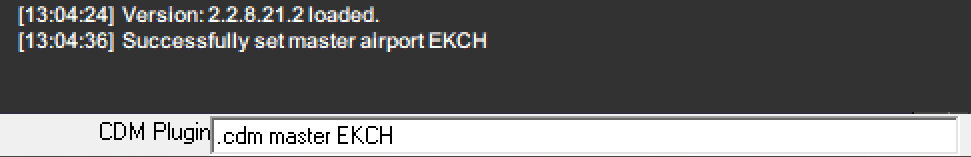

Write .cdm master EKCH to activate!

Perform above item before continuing, otherwise all is "????"

Expanded CDM procedures are done from Startup list. Please know that:

You should adhere to CDM procedures at all times, either through Departure list or Startup list.
You MUST adhere to displayed CTOT for takeoff

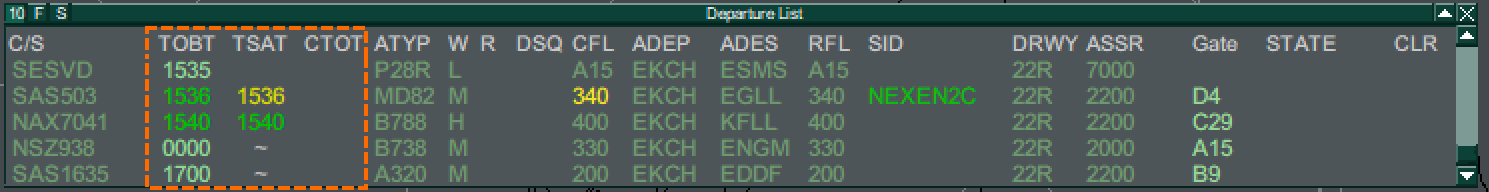

Press on the top of the TSAT column where it says TSAT! This orders the departure list after TSATs and makes it easier to manage

TOBT shows the estimated time of departure filed by the pilot.

TOBT: Is Light green when the time is valid but not yet within the window for startup.
TOBT: Is Dark green when the time is within time for startup approval.

TSAT: Is Light green when the time is valid but not yet within the window for startup.
TSAT: Is Dark green when the time is within time for startup approval.
TSAT: Is Yellow when the time is within 1 minute from expiring
TSAT is blank if time is expired.

CTOT: Is Green, Orange or Red depending on the type of restriction triggering the CTOT.

Aircraft calls for ATC Clearance

If CTOT is present: Advise of CTOT. You MUST in this case adhere to the TSAT. Advise pilot about CTOT!

If no CTOT: No further action required at this stage

Aircraft calls for STARTUP/PUSHBACK

if CTOT is present:

Adhere to TSAT Displayed . If TSAT is not yet within startup window (Light green), pilot must wait.
When TSAT is within startup window (Dark Green) (+/- 5min) Start-up can be approved.

if no CTOT is present

Start and push can be approved, regardless of TSAT time
Be aware that non-adherance to TSATs may result in longer waiting times at the runway.
